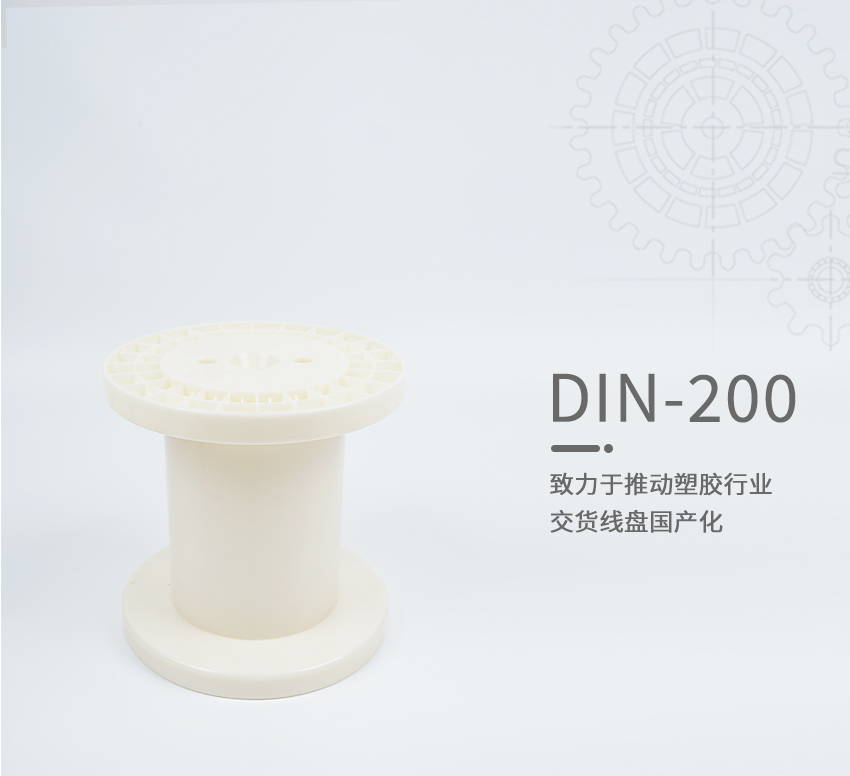

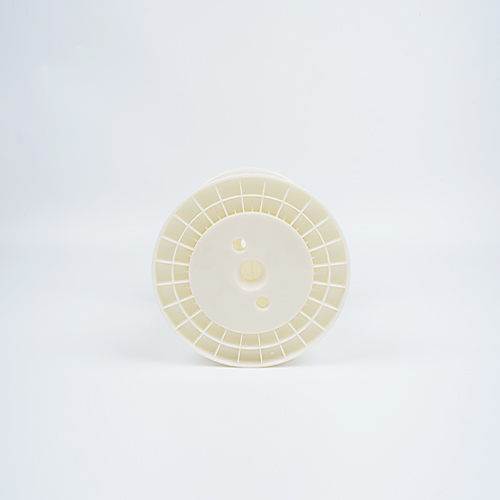

DIN-200
DIN-200
產品標注：
產品型號 | 產品重量 （g） | d1/D1 (mm) | d2/D2 (mm) | H1 (mm) | H2 (mm) | d3 (mm) | A1 (mm) | A2 (mm) | d4 (mm) | E (mm) | 原料 | ||
| DIN-200A | 600 | 200 | 125 | 160 | 200 | 22 | 20 | 20 | 13.5 | 32 | ABS/PS | ||
| DIN-200B | 600 | 200 | 125 | 160 | 200 | 32 | 20 | 20 | 13.5 | 32 | ABS/PS | ||
| DIN-200C | 650 | 200 | 125 | 160 | 200 | 32 | 20 | 20 | 13.5 | 32 | ABS/PS | ||
| DIN-200D | 650 | 200 | 125 | 160 | 200 | 22 | 20 | 20 | 13.5 | 32 | ABS/PS | ||
| DIN-200E | 650 | 200 | 125 | 160 | 200 | 30 | 20 | 20 | 13.5 | 32 | ABS/PS | ||
| DIN-200F | 630 | 200 | 125 | 160 | 200 | 22 | 20 | 20 | A:2孔15 B:2孔17 | A:2孔32 B:2孔44 | ABS/PS | ||
| DIN-200G | 680 | 200 | 125 | 160 | 200 | 30 | 20 | 20 | 13.5 | 32 | ABS/PS | ||
|
